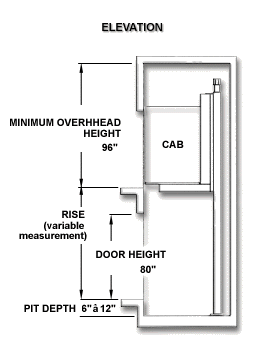

Configurations and Dimensions

Our elevators easily integrate into any residential or commercial environment.

Our engineers have designed an elevator system that is easy and quick to install.

Our elevator systems comply with applicable local, provincial, and national codes, namely:
CAN/CSA B-355, CAN/CSA B-613, CAN/CSA-B-44, and ANSI A-17.1 in the U.S.

Powered by different electrical sources and equipped with a surface-mounted cylinder that requires no drilling, our systems are installed quickly.

Compact Size

Our systems only require between 17 and 30 ft² for a residential or commercial installation.

The hydraulic power unit and control box can easily be installed in a closet or under a staircase.

For a commercial installation, a specific location may be required, depending on local codes.

Type 1

Front opening only

OP33FE 3' x 3'

OP34FE 3' x 4'

OP35FE 3' x 5'

OP36FE 3' x 6'

OP37FE 3' x 7'

OP44FE 4' x 4'

OP45FE 4' x 5'

Type 2

Front-rear opening

OP34TE 3' x 4'

OP35TE 3' x 5'

OP36TE 3' x 6'

OP37TE 3' x 7'

OP44TE 4' x 4'

OP45TE 4' x 5'

Type 3
